product description:

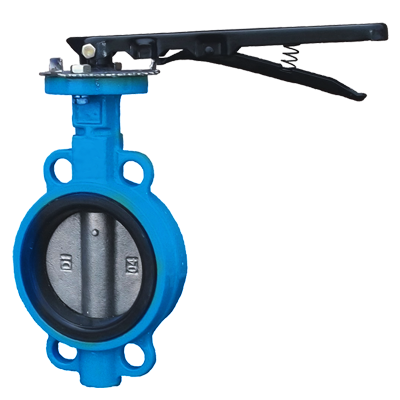

Product Name and Model: Clip-on rubber butterfly valve

Product Usage:

The clip-on butterfly valve is suitable for regulating flow and intercepting medium on water supply and drainage, gas pipelines such as medicine, chemical industry, petroleum, electric power, textile, papermaking, etc. The applicable temperature is ≤80°C.

Structural features

1. Simple and compact structure, small and light, easy to disassemble and repair, and can be installed at any position

2, 90 degree rotation, rapid opening and closing

3, the flow characteristics tend to be straight, the adjustment performance is good

4, choose different parts and materials, can be applied to a variety of media

Main performance specifications:

Midline structure

Drive mode: worm gear drive, electric, pneumatic, manual

Applicable temperature: nitrile rubber: -40 ° C ~ 90 ° C Fluorine rubber: -20 ° C ~ 200 ° C

Applicable medium: water, air, natural gas, oil and weak corrosive fluid

Nominal diameter DN50~DN400 Nominal pressure PN10~PN25
